Verify a Cluster Mesh

This guide takes a connected Cluster Mesh and proves it end to end: a service with backends only in one cluster, consumed from a pod in the other, verified live in the portal’s pod terminal. It is the exact test we run against every mesh change — about five minutes, nothing left behind.

What you need

Two clusters joined to the same mesh, both members showing ready:
ankra cluster mesh show <mesh-id>
kubectl contexts for both clusters (ankra cluster kubeconfig add --use on each).

Throughout this guide, cluster A runs the backends and cluster B consumes them. The direction is arbitrary — swap it or run it both ways.

1. Deploy backends and a global service on cluster A

The whole trick is one annotation: service.cilium.io/global: "true". A Service carrying it, with the same name and namespace in every cluster, is one service mesh-wide — Cilium merges the healthy backends from every member.

mesh-echo-backend.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: mesh-test
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mesh-echo
  namespace: mesh-test
spec:
  replicas: 2
  selector:
    matchLabels:
      app: mesh-echo
  template:
    metadata:
      labels:
        app: mesh-echo
    spec:
      containers:
        - name: echo
          image: ealen/echo-server:0.9.2
          ports:
            - containerPort: 80
          env:
            - name: PORT
              value: "80"
          resources:
            requests:
              cpu: 10m
              memory: 32Mi
            limits:
              cpu: 100m
              memory: 64Mi
---
apiVersion: v1
kind: Service
metadata:
  name: mesh-echo
  namespace: mesh-test
  annotations:
    service.cilium.io/global: "true"
spec:
  selector:
    app: mesh-echo
  ports:
    - port: 80
      targetPort: 80

kubectl --context <cluster-a> apply -f mesh-echo-backend.yaml

2. Create the same global service on cluster B — with no backends

Cluster B gets the Service and namespace only. Its selector matches nothing locally, which is the point: any traffic it serves must have crossed the mesh.

mesh-echo-frontend.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: mesh-test
---
apiVersion: v1
kind: Service
metadata:
  name: mesh-echo
  namespace: mesh-test
  annotations:
    service.cilium.io/global: "true"
spec:
  selector:
    app: mesh-echo
  ports:
    - port: 80
      targetPort: 80

kubectl --context <cluster-b> apply -f mesh-echo-frontend.yaml
kubectl --context <cluster-b> -n mesh-test run mesh-client \
  --restart=Never --image=curlimages/curl:8.10.1 --command -- sleep 14400

The mesh-client pod is your vantage point inside cluster B.

3. Prove it from the pod terminal

In the portal, open cluster B → Kubernetes → Workloads → Pods, search for mesh-client, open it, and switch to the Terminal tab. Connect, then run:

hostname; for i in 1 2 3 4 5; do curl -s mesh-echo.mesh-test | grep -o '"HOSTNAME":"[^"]*"'; done

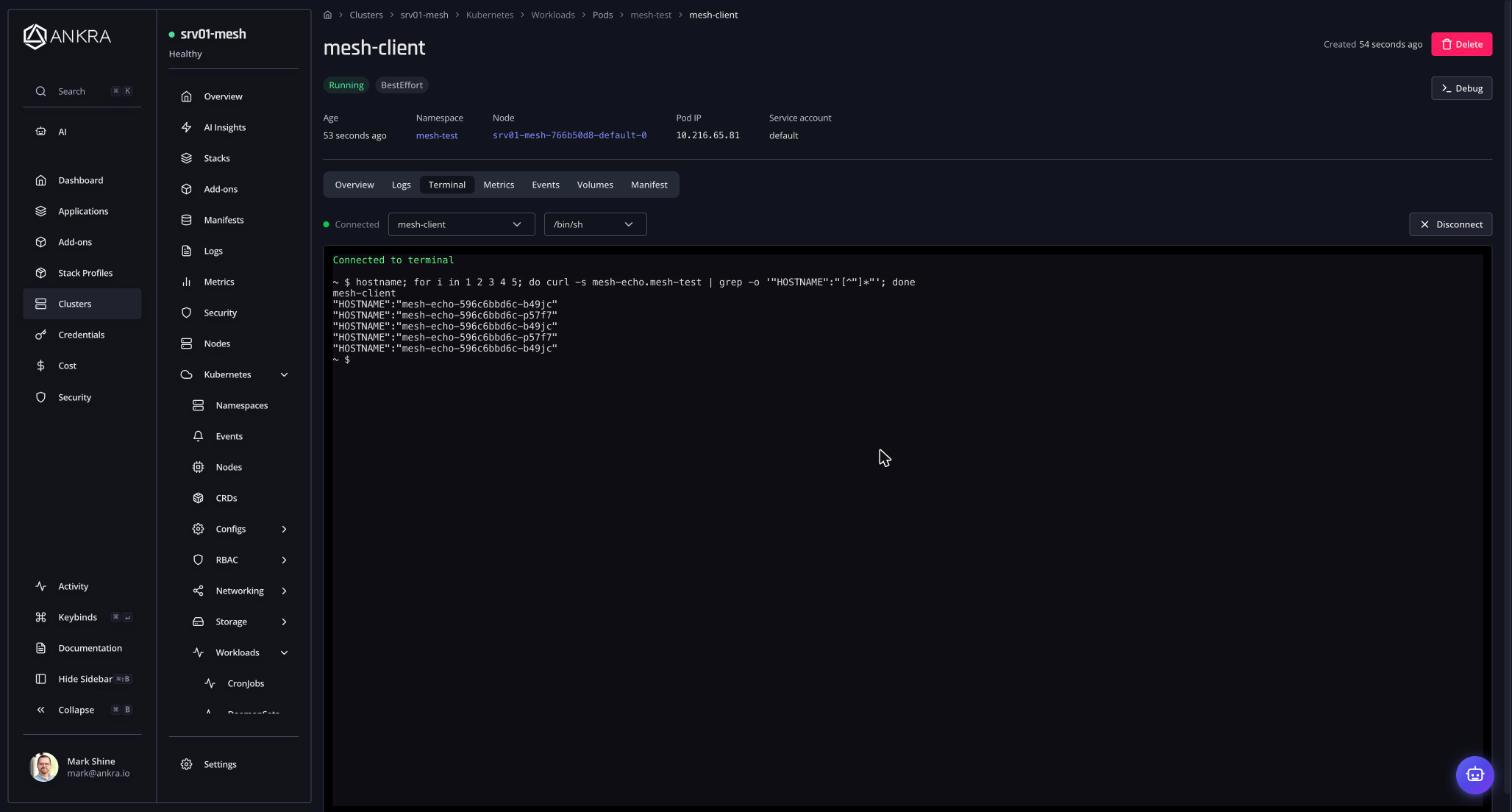

Ankra pod terminal on the consuming cluster: hostname prints mesh-client, and five curl responses print the HOSTNAME of mesh-echo backend pods that run on the other cluster, alternating between the two — Five requests from a pod on one cluster, every response served by pods on the other — load-balanced between them.

Read what the output says: hostname confirms you are in mesh-client on cluster B, and every response’s HOSTNAME is a mesh-echo-… pod. Cluster B has zero backends for this service, so each of those responses was served across the mesh — and the alternation between pod names is Cilium load-balancing over the remote backends.

4. Close the loop

Open cluster A → Kubernetes → Workloads → Pods and search for mesh-echo:

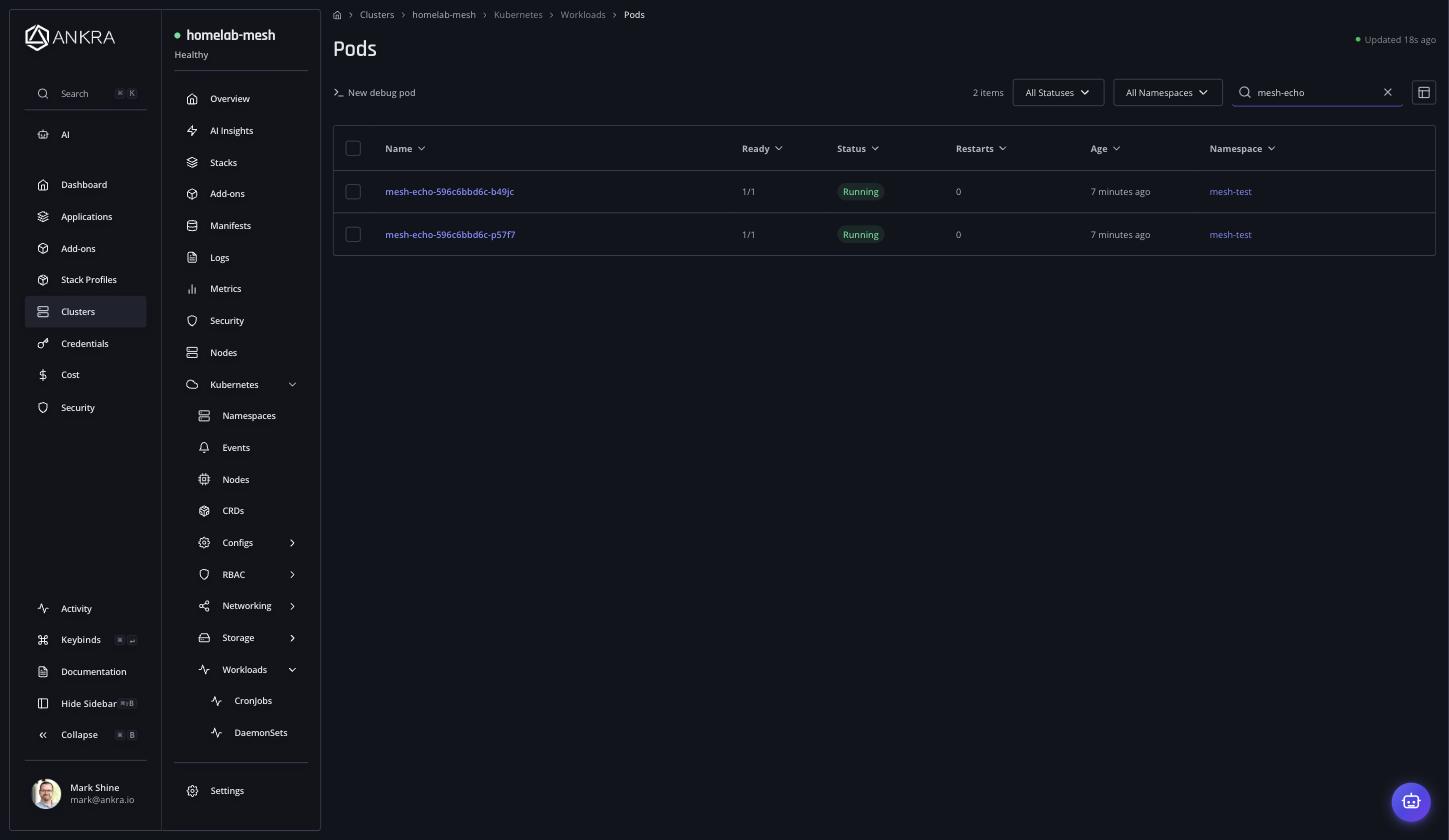

Cluster A's pod list showing the two mesh-echo backend pods, Running in the mesh-test namespace, whose names match the HOSTNAME values the terminal printed — The exact pods that served the requests, running on the other cluster.

The pod names match the HOSTNAME values from the terminal, byte for byte. Request made on one cluster, served by the other.

What this verifies — and what it does not

A passing run proves the whole chain at once: the shared trust root, both clustermesh-apiservers, the cross-cluster service catalogue, and the pod-to-pod data path over the overlay. If you want the layer-by-layer view instead, cilium-dbg status inside a Cilium agent pod reports ClusterMesh: 1/1 remote clusters ready, and cilium-health status probes every node and endpoint in both clusters. For real workloads, run backends in both clusters behind the global service: Cilium prefers healthy backends and a cluster losing its local ones fails over to the remote side. This guide keeps backends on one side only because asymmetry is what makes the proof unambiguous.

Troubleshooting

curl times out — check both members read ready in ankra cluster mesh show; a member in configuring has not converged yet, and degraded means it verified fewer peers than expected. The Cluster Mesh page maps each status to its fix.
DNS resolves but only local backends answer — the Service must carry service.cilium.io/global: "true" and identical name + namespace in both clusters; a mismatch on either side splits it back into two local services.
A Proxmox or on-prem pair — confirm the site prerequisites (site address, UDP port-range forward): one reachable side is enough, but none is not.

Clean up

kubectl --context <cluster-a> delete namespace mesh-test
kubectl --context <cluster-b> delete namespace mesh-test
